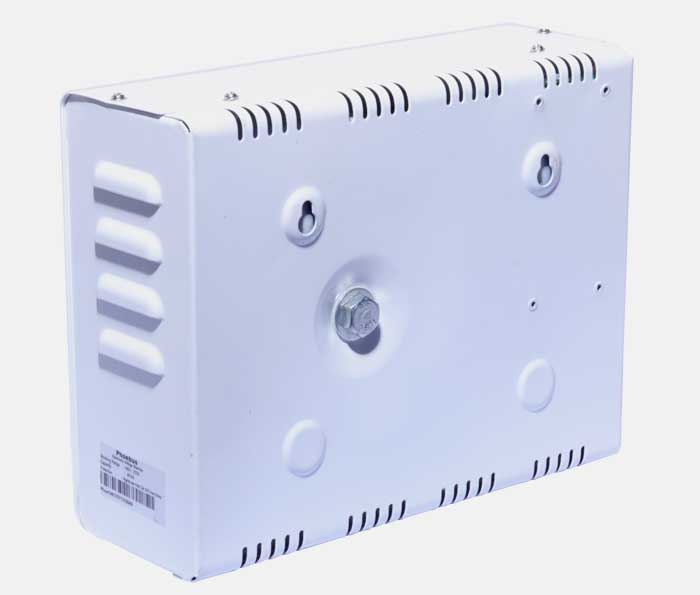

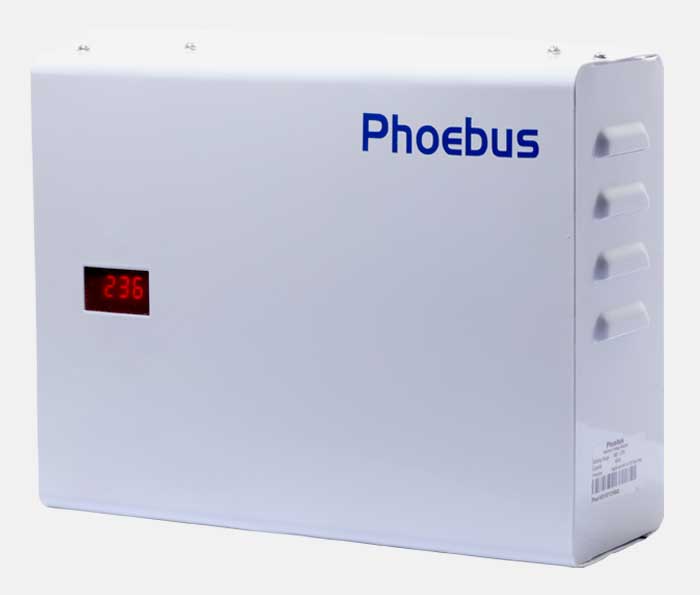

Phoebus Automatic Voltage Stabilizer For Air Conditioner Upto 1.0 Ton (90V-280V) with Digital Display
Click on image to Enlarge
Click on image to Enlarge
Click on image to Enlarge
Click on image to Enlarge
| Sr No |
MODEL NO |
Phoebus Automatic Voltage Stabilizer
For Air Conditioner
Upto 1.0 Ton
(90V-280V) with Digital Display
|
| DESIGN BRIEF |
| 1 |
Brand |
PAPL |
| 2 |
No. of steps |
5 steps |
| 3 |
KVA |
3 KVA |
| 4 |
Input Voltage |
90-270 Volts |
| 5 |
OUTPUT VOLTAGE |
207 - 253 Volts (230 +/- 10%) |
| 6 |
Type of mounting |
Wall Mounted |
| 7 |
DISPLAY |
DIGITAL |
| 8 |
Operating Line Frequency |
50 +/- 1 Hz |
| 9 |
Max. Current |
12 Amps |
| 10 |
Continuous Current Rating |
7 Amps |
| 11 |
Transformer Type |
Torroidal / EI type |
| 12 |
Operating Temperature |
0oC - 50oC |
| 13 |
High Voltage Cut Off |
253 Volts |
| 14 |
Low Voltage Cut Off |
207 Volts |
| 15 |
Time Delay |
TDR |
| 16 |
Input Termination |
3 Core Cable - 1.0 metre length |
| 17 |
Output Termination |
30 Amps terminal Block - DMC |
| 18 |
Circuit Control |
IC Based |
| 19 |
Front Panel Indications |
Output NORMAL, Output CUTOFF |
| FEATURES |
| 1 |
High Low Cut off Feature |
Yes |
| 2 |
Built In Overload protection |
Dry Mode |
| 3 |
Design |
Fire proof design |
| 4 |
Color |
White or AC facia color |
| 5 |
Looks |
Slim and Smart Look |
| 6 |
Warranty |
02 Years |
| 7 |
Auto Restart |
Automatic Restart System |
Phoebus Automatic Voltage Stabilizer For Air Conditioner Upto 1.0 Ton (140V-280V) with Digital Display
Click on image to Enlarge
Click on image to Enlarge
Click on image to Enlarge
Click on image to Enlarge
| Sr No |
MODEL NO |
Phoebus Automatic Voltage Stabilizer
For Air Conditioner
Upto 1.0 Ton
(90V-280V) with Digital Display
|
| DESIGN BRIEF |
| 1 |
Brand |
PAPL |
| 2 |
No. of steps |
5 steps |
| 3 |
KVA |
3 KVA |
| 4 |
Input Voltage |
90-270 Volts |
| 5 |
OUTPUT VOLTAGE |
207 - 253 Volts (230 +/- 10%) |
| 6 |
Type of mounting |
Wall Mounted |
| 7 |
DISPLAY |
DIGITAL |
| 8 |
Operating Line Frequency |
50 +/- 1 Hz |
| 9 |
Max. Current |
12 Amps |
| 10 |
Continuous Current Rating |
7 Amps |
| 11 |
Transformer Type |
Torroidal / EI type |
| 12 |
Operating Temperature |
0oC - 50oC |
| 13 |
High Voltage Cut Off |
253 Volts |
| 14 |
Low Voltage Cut Off |
207 Volts |
| 15 |
Time Delay |
TDR |
| 16 |
Input Termination |
3 Core Cable - 1.0 metre length |
| 17 |
Output Termination |
30 Amps terminal Block - DMC |
| 18 |
Circuit Control |
IC Based |
| 19 |
Front Panel Indications |
Output NORMAL, Output CUTOFF |
| FEATURES |
| 1 |
High Low Cut off Feature |
Yes |
| 2 |
Built In Overload protection |
Dry Mode |
| 3 |
Design |
Fire proof design |
| 4 |
Color |
White or AC facia color |
| 5 |
Looks |
Slim and Smart Look |
| 6 |
Warranty |
02 Years |
| 7 |
Auto Restart |
Automatic Restart System |
