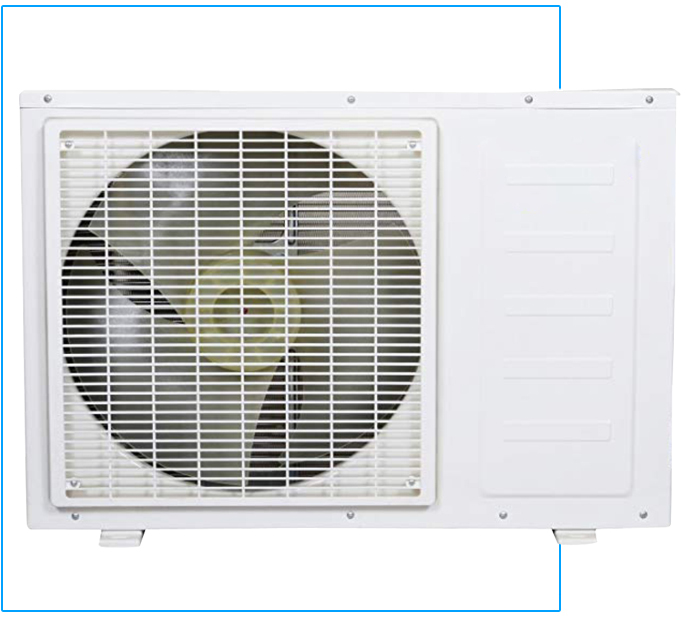

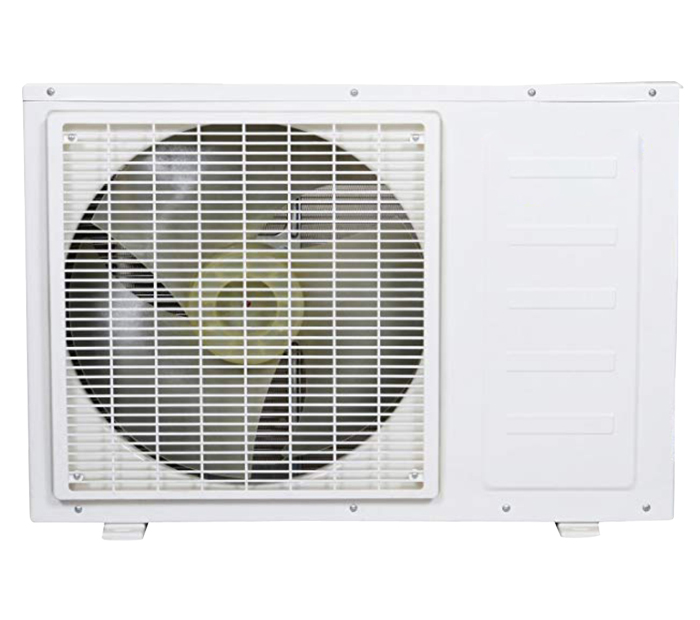

Outdoor Unit for Split Air Conditioner Rotary (3 Star)
Click on image to Enlarge
|
|
|
12K 1.0 Ton 5 star |
18K 1.50 Ton 5 star |
| Power supply |
Ph-V-Hz |
1Ph, 220-240V～, 50Hz |
1Ph, 220-240V～, 50Hz |
| Cooling |
Capacity |
Btu/h |
12,000 |
18,000 |
|
Capacity |
W |
3,500 |
5,200 |
|
Input |
W |
1000 |
1485 |
|
Rated current |
A |
4.4 |
6.6 |
|
EER |
W/W |
3.5 |
3.5 |
| Heating |
Capacity |
Btu/h |
N/A |
N/A |
|
Input |
W |
N/A |
N/A |
|
Rated current |
A |
N/A |
N/A |
|
ACOP |
W/W |
N/A |
N/A |
|
COP |
W/W |
N/A |
N/A |
| Moisture Removal |
L/h |
1 |
1.5 |
| Max. input consumption |
W |
1300 |
1931 |
| Max. current |
A |
5.7 |
9 |
| Compressor |
Model |
|
ASM135V5VFT |
SH286UY |
|
Type |
|
ROTARY |
ROTARY |
|
Brand |
|
GMCC |
Highly |
|
Capacity |
Btu/h |
12000 |
18630 |
|
Input |
W |
890 |
1270 |
|
Rated current(RLA) |
A |
4.1 |
5.9 |
|
Locked rotor Amp(LRA) |
A |
25 |
36 |
|
Capacitor |
uF |
35 |
45 |
|
Refrigerant oil/oil charge |
ML |
350 |
620 |
| indoor fan model |
Welling model |
|
GGSDJ-06(H) |
RPS19K-12 |
|
Input |
W |
45 |
48 |
|
Capacitor |
uF |
1.5 |
2 |
|
Speed(Hi/Mi/Lo) |
r/min |
1350/1200/1050/950 |
1180/1050/930 |
|
a.Number of rows |
|
2 |
2 |
|
b.Tube pitch(a)x row pitch(b) |
mm |
21x12.7 |
21x12.7 |
|
c.Fin spacing |
mm |
1.3 |
1.6 |
|
e.Tube outside dia.and type |
mm |
Φ7,innergroove tube |
Φ7,innergroove tube |
|
f.Coil length x height x width |
mm |
705×315×25.4 |
778X378X25.4 |
| Indoor air flow (Hi/Mi/Lo) |
m3/h |
850/800/750 |
950/880/810 |
| Indoor noise level (Hi/Mi/Lo) |
dB(A) |
44/40/36 |
44/41/38 |
| Indoor unit |
Dimension(W*D*H) |
mm |
900*280*202 |
1020x320x215 |
|
Packing (W*D*H) |
mm |
985*365*298 |
1100x290x390 |
|
Net/Gross weight |
Kg |
11 / 14 |
14/17 |
| outdoor fan model |
Welling/Broad-ocean |
|
GZSDJ-33 |
YDK-075S63520-04/YDK53-6Q |
|
Input |
W |
85 |
130/147 |
|
Capacitor |
uF |
3 |
4 |
|
Speed |
r/min |
820 |
770 |
|
a.Number of rows |
|
2 |
2 |
|
b.Tube pitch(a)x row pitch(b) |
mm |
20x11.6 |
21x12.7 |
|
c.Fin spacing |
mm |
1.2 |
1.6 |
|
e.Tube outside dia.and type |
mm |
Φ5,innergroove tube |
7.94/Inner-groove Copper |
|
f.Coil length x height x width |
mm |
713*565*23.2 |
775X660.4X25.4 |
|
g.Number of circuits |
|
4 |
2 |
| Outdoor air flow |
m3/h |
1950 |
2800 |
| Outdoor noise level |
dB(A) |
64 |
57 |
| Outdoor unit |
Dimension(W*D*H) |
mm |
780×290×605 |
843x695x330 |
|
Packing (W*D*H) |
mm |
883×412×653 |
1010x750x425 |
|
Net/Gross weight |
Kg |
38/42 |
35/39 |
| Refrigerant type |
g |
R410a |
R22 |
| Design pressure |
MPa |
4.5/1.3 |
2.65 |
| Refrigerant piping |
Liquid side/ Gas side |
mm |
Φ6/Φ12 |
6.35/12.7 |
|
Max. refrigerant pipe length |
m |
15 |
12 |
| Thermostat type |
|
Remote Control |
Bulb |
| Operation temp |
℃ |
16-31 |
16-31 |
| Ambient temp (cooling/heating) |
℃ |
18～43 |
18～43 |
| Application area |
m2 |
30-50 |
30-50 |
