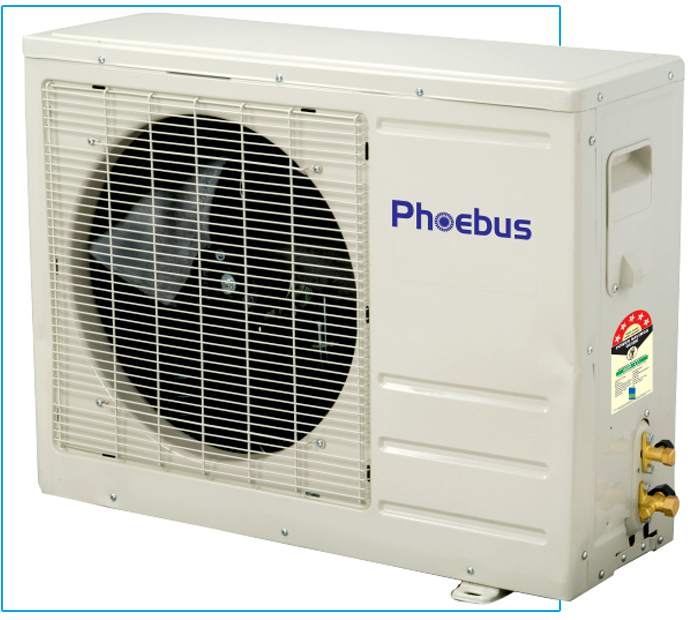

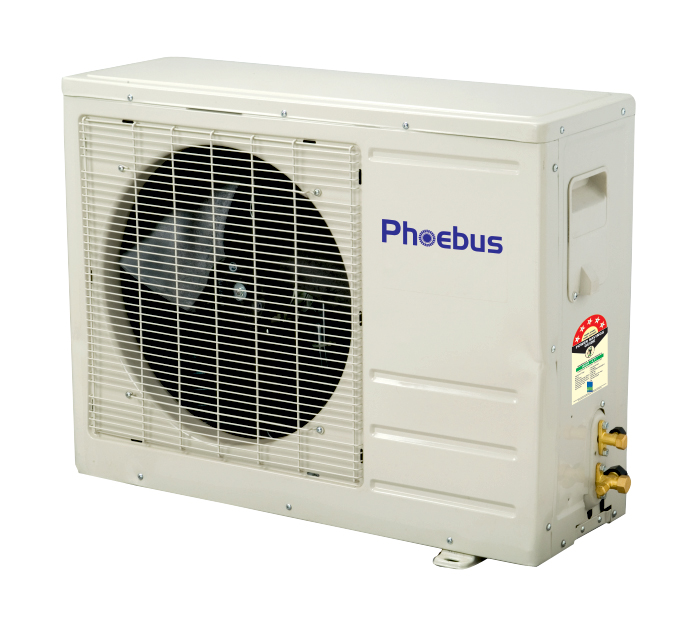

Outdoor Unit for Split AC Rotary (2 Star)
Click on image to Enlarge
| Technical Specification |
| Model |
18K |
| Factory Model |
PAPL 18K |
| Climate type |
T1 |
| Indoor unit |
1070MM |
| Outdoor Unit |
20" Chassis |
| Power supply |
Ph-V-Hz |
1Ph-220~230V-50Hz |
| Type |
|
Cooling |
| Power Supply Mode |
|
alternating current |
| Control type |
|
Remote Controller |
| Cooling |
Capacity |
Btu/h |
18000 |
|
|
W |
5100 |
|
Power Input |
W |
1620 |
|
Rated Current |
A |
7.1 |
|
EER |
W/W |
3.15 |
| Compressor |
Model |
|
|
|
Type |
|
ROTARY |
|
Brand |
|
HIGHLY / GMCC |
| Indoor unit |
Indoor fan motor |
Model |
|
|
|
|
Brand |
|
Welling |
|
|
Capacitor |
uF |
2 |
|
|
Motor speed (TU/Hi/Mi/Lo) |
RPM |
1250 |
|
Evaporator |
a.Number of rows |
|
2 |
|
|
b.Tube pitch(a)x row pitch(b) |
mm |
21X12.7 |
|
|
c.Fin material |
|
Window / Aluminium |
|
|
d.Tube outside dia.and type |
mm |
φ7Innegroove tube/Cu |
|
|
e.Coil length x height x width |
mm |
700*330*25.4 |
|
Indoor air flow |
m3/h |
800 |
|
Noise level |
dB(A) |
45 |
|
Unit dimension (W*H*D) |
mm |
900×220×302 |
|
Packing (W*H*D) |
mm |
970×280×360 |
|
Net weight |
Kg |
|
|
Gross weight |
Kg |
|
| Outdoor unit |
Outdoor fan motor |
Model |
|
Y5S613C297N |
|
|
Brand |
|
Welling/Broad-ocean |
|
|
Capacitor |
uF |
2.5 |
|
|
Motor speed |
Rpm |
850 |
|
Condenser |
a.Number of rows |
|
2 |
|
|
b.Tube pitch(a)x row pitch(b) |
|
21X12.7 |
|
|
c.Fin material |
|
Window/Aluminium |
|
|
d.Tube outside dia.and type |
mm |
φ7Innegroove tube/Cu |
|
|
e.Coil length x height x width |
|
752x559x25.4 |
|
Noise level |
dB(A) |
56 |
|
Unit dimension (W*H*D) |
mm |
782*580*272 |
|
Packing (W*H*D) |
mm |
905*640*365 |
|
Net weight |
Kg |
|
|
Gross weight |
Kg |
|
|
Refrigerant type |
|
R22 |
| Refrigerant pipe |
Liquid side |
mm |
6 |
|
Gas side |
mm |
12 |
|
Max. refrigerant pipe length |
m |
12 |
|
Max. difference in level |
m |
7 |
