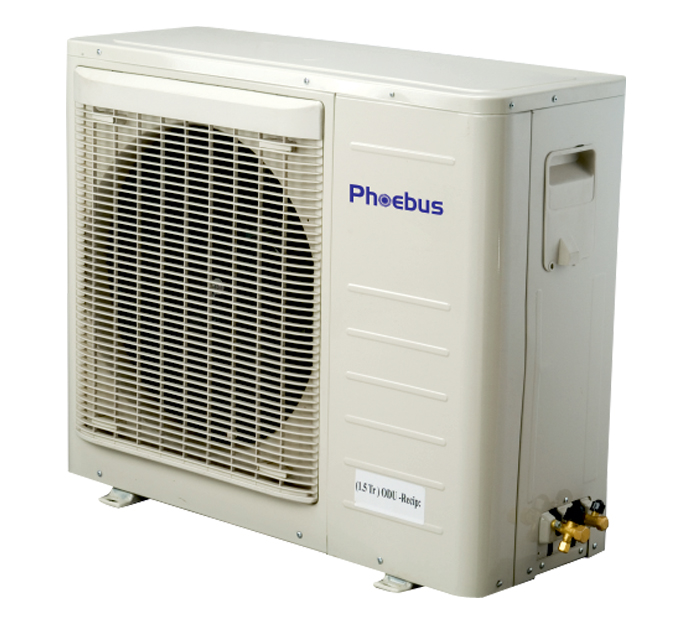

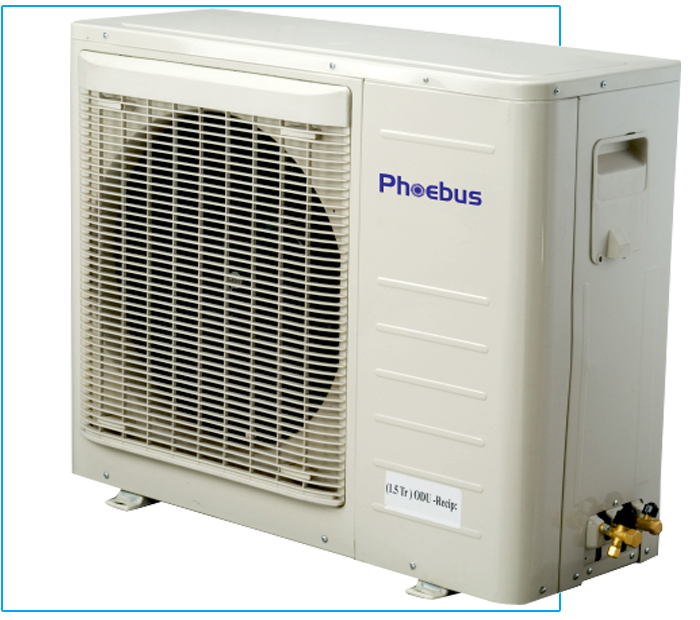

Outdoor Unit for Split Air Conditioner Recip (1 Star)
Click on image to Enlarge
| Descriptions |
Unit |
PAPL-18V (Reciprocating) |
PAPL-24V (Reciprocating) |
| Power Supply |
Ph-v-hz |
1-230-50 |
1-230-50 |
| Cooling |
Capacity |
Btu/h |
18000 |
24000 |
|
Input Power Consumption |
W |
1882 |
2399 |
|
Rated Current |
A |
7.9 |
10.21 |
|
EER |
W/W |
2.72 |
2.72 |
|
STAR |
|
2 |
2 |
| Moisture Removel |
L/h |
2.3 |
3 |
| Max. Input Consumption |
W |
2560 |
3262 |
| Max. Cuurent |
A |
10.75 |
13.88 |
| Starting Current |
A |
40 |
60 |
| Compressor |
Model |
|
CR22K6M |
CR30K6M |
|
Type |
|
Reciprocating |
Reciprocating |
|
Brand |
|
Emerson |
Emerson |
|
Capacity |
Btu/h |
19000 |
25000 |
|
Input |
W |
1750 |
2350 |
|
Rated Current (RLA) |
A |
7.8 |
11 |
|
Locked Rotor Amp. (LRA) |
A |
54 |
72 |
|
Thermal Protector |
|
Internal |
Internal |
|
Capacitor |
MFD |
40 |
50 |
| Indoor Fan Motor |
Model |
|
RPS19K-12 |
RPS19K-13 |
|
Brand |
|
WELLING |
WELLING |
|
Input |
W |
48 |
48 |
|
Capacitor |
MFD |
2 |
2 |
|
Speed (H/M/L) |
RPM |
1180/1050/930 |
1180/1050/930 |
| Indoor Coil |
a. Number of Row×Pipes |
|
2*18 |
2*20 |
|
b. Tube Pitch×Row Pitch |
MM |
21×12.7 |
21×12.7 |
|
c. Fin Spacing |
MM |
1.6 |
1.6 |
|
d. Tube Out side dia & Type |
MM |
hydrophilic |
hydrophilic |
|
e. Fin Type |
|
7/Inner-groove Copper |
7/Inner-groove Copper |
|
f. Coil L×H×W |
MM |
778X378X25.4 |
778X378X25.4 |
| Indoor Air Flow |
m3/h |
950/880/810 |
950/880/810 |
| Indoor Noise Level |
db (A) |
44/41/38 |
44/41/38 |
| Indoor Unit |
Dimension (W×H×D) |
MM |
1020×320×215 |
1020×320×215 |
|
Packing (W×H×D) |
MM |
1100×390×290 |
1100×390×290 |
|
Net & Gross Weight |
KG |
13/15 |
13/15 |
| Out door Fan Motor |
Model |
|
95B306A1S/2L-CK33 |
95B306A1S/2L-CK33 |
|
Type |
|
Copper motor |
Copper motor |
|
Brand |
|
Micro Instruments |
Micro Instruments |
|
Input |
W |
1/15hp |
1/15hp |
|
Capacitor |
MFD |
3.15 |
3.15 |
|
Speed |
RPM |
890 |
890 |
| Out Door Coil |
a. Number of Row×Pipes |
|
26×1 |
26×1.5 |
|
b. Tube Pitch×Row Pitch |
MM |
25.4 |
25.4 |
|
c. Fin Spacing |
MM |
1.67 |
1.67 |
|
d. Tube Out side dia & Type |
MM |
9.52/Inner groove copper |
9.52/Inner groove copper |
|
e. Fin Type |
|
hydrophilic |
hydrophilic |
|
f. Coil L×H×W |
MM |
810×610×24 |
810×610×24 |
| Out door Air flow |
m3/h |
2800 |
2800 |
| Out door Noise Level |
db (A) |
57 |
57 |
| Out Door Unit |
Dimension (W×H×D) |
MM |
845×620×315 |
845×620×315 |
|
Packing (W×H×D) |
MM |
975×705×425 |
975×705×425 |
|
Net & Gross Weight |
KG |
54/56 |
56 |
| Refrigerant type |
gm |
R22 |
R22 |
| Design Pressure |
Mpa |
2.94 |
2.94 |
| Refrigerant Piping |
Liquid Side/ Gas Side |
MM |
6.35/12.7 |
6.35/15.88 |
|
Max. Refrigerant Pipe Length |
M |
12 |
12 |
| Thermostat Type |
|
Bulb |
Bulb |
| Operation Temp. |
⁰C |
16-32 |
16-32 |
| Amient Temp. |
⁰C |
21-52 |
21-52 |
| Application Area |
m2 |
35-50 |
35-50 |
